Lock and Accessories
X8092
Standard
Size
Materials
Mortise
Color
Card
Frequency
Working Voltage
Power Consumption
Low Batt. Alarm
Duration
Log Storage
Open Mode
Humidity
Temperature

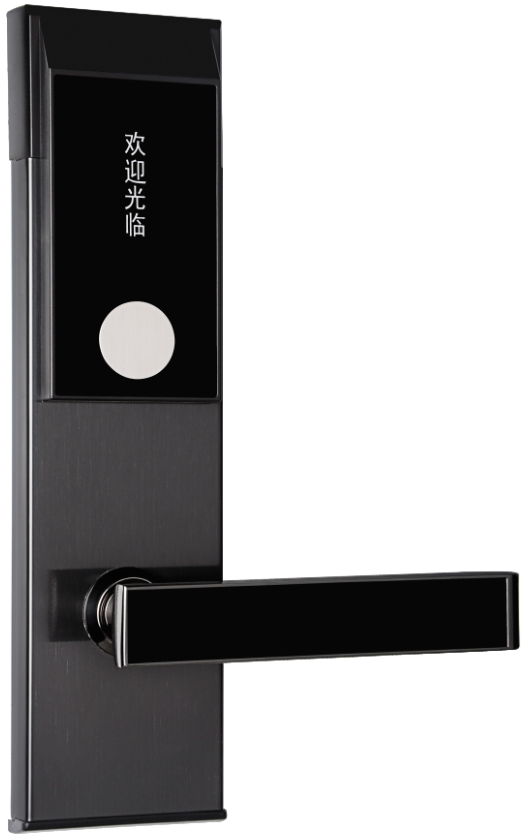

Black

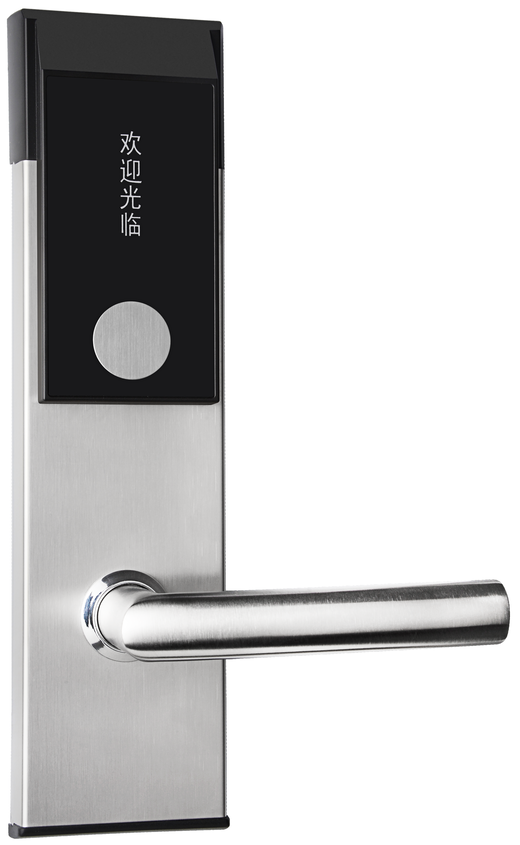

Silver

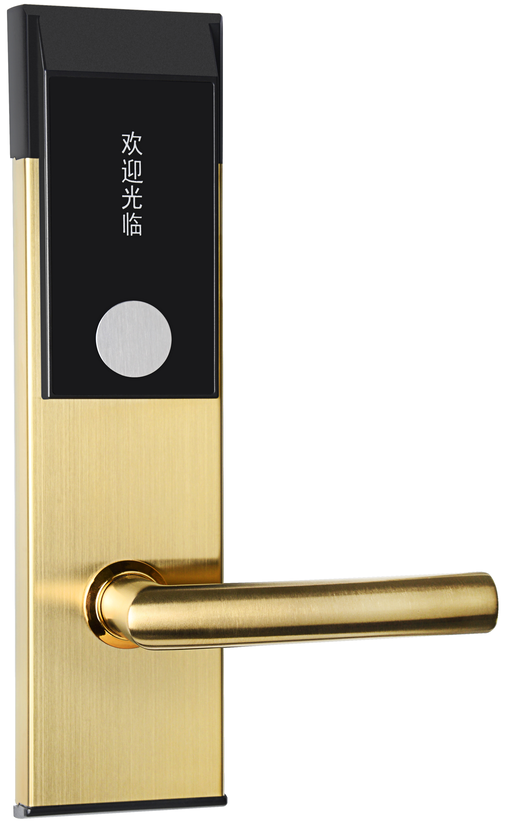

Gold

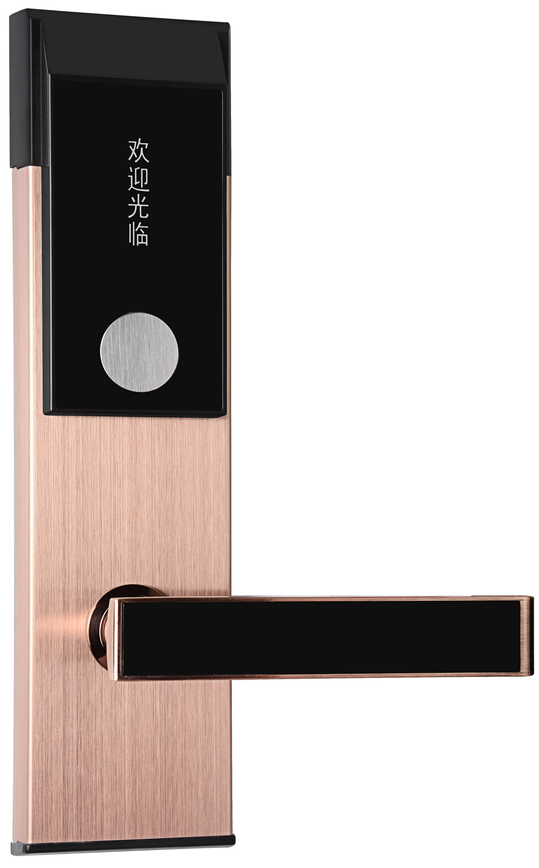

Bronze

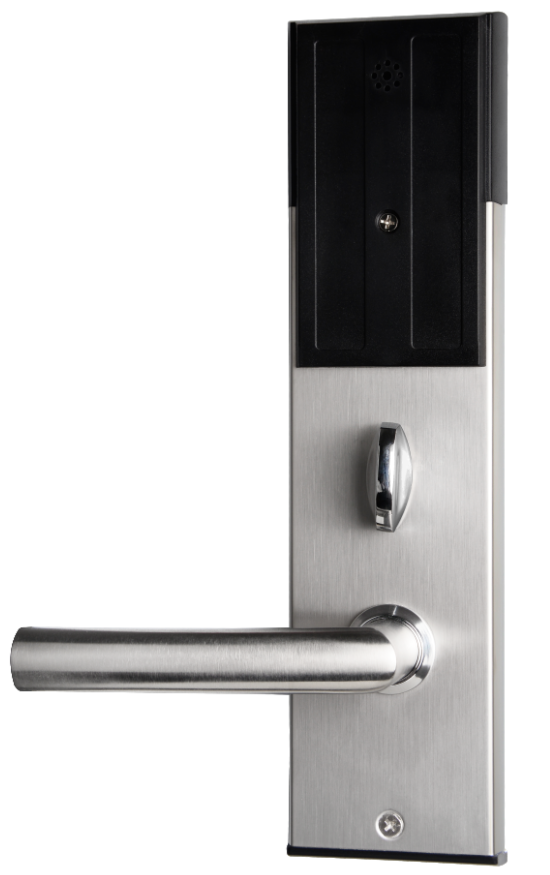

Back Panel
- Guide to Buy
- New Door
Newly installed and not yet drilling holes, please advise us the thickness of the door and the direction of the door opening. A lock list match your door will come to your desk promptly.
- Notice
The door opening direction is complicated and must be determined carefully.
- Old Door
Please measure the Tags dimensions according to the picture sketched, A perfect solution will come to you accordingly.
- Notice
The door opening direction is need as well with dimensions.
Description
Door Thickness
B
C
Description
Plate Thickness
E
F
Description
Handle -> Key
H
- Guide to Network
Network Topology
- One-stop Hotel Apartment Dormitory Solution
- Network door lock management, consisting of PC, mobile phone, and Pad
- Multiple networking modes: Lora, Cat1, Zigbee, Sub-1G(433), WIFI, Bluetooth and other communication modes
- Permanent free use of management software
- Applications
Bluetooth Connect
The door lock is connected to the Internet by WIFI or cable via Bluetooth gateway, Bluetooth range is 8 ~ 12m.
WIFI Connect
Door lock built-in WIFI module networking
SUB—1G Connect
Embedded 433 module is converted into 433 communication by 433 gateway through the network cable or 4G gateway (traffic card), with a coverage range of 80~120 meters.
ZigBee (Tuya) Connect
Bind the door lock to the Zigbee (Tuya) gateway。
CAT1 Connect
Built-in Cat1 module directly accesses the communication network through a 4G traffic card.
Lora Connect
The lora gateway converts to lora communication through network cables, with a coverage range of 1.2km. A single gateway can connect to 48 door locks.
Management Platform
Efficient and convenient management functions, support remote, anytime viewing of room lock records, battery power query, authorized users, etc. Free open protocol interface, docking with hotel system, apartment system, school system, staff dormitory management and OA management system.
